Our core positioning
Professional HVLS Industrial Fan Manufacturer with Full-Chain Independent Core Technology
SINO FANS is a high-tech enterprise specializing in ventilation and energy-saving solutions for large and tall spaces. Integrating core technology R&D, large-scale production, global marketing and full-cycle services, our core business is HVLS industrial large fans (High-Volume Low-Speed industrial large fans).
10+ Years Experience
Global Exports
ISO & CE Certified
Independent R&D Motor
Product Overview

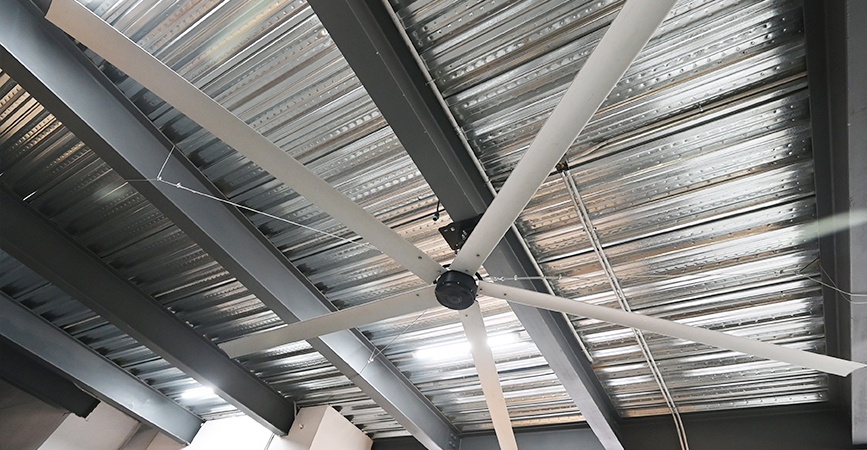

Permanent Magnet Synchronous Brushless Industrial HVLS (High Volume Low Speed) Ceiling Fans are large-scale ventilation and cooling equipment specially designed for high-ceiling industrial and commercial spaces. Powered by a Permanent Magnet Synchronous Motor (PMSM) as the core drive and paired with aerodynamically optimized large-diameter fan blades, the fans operate at low speeds to move massive volumes of air and form full-space circulation, delivering multiple functions including natural ventilation, sensible cooling, dehumidification and odor removal.They are widely used in various high-ceiling environments such as factories, warehouses, logistics centers, gymnasiums, exhibition halls, waiting lounges and livestock farms.
Core Product Advantages
Ultra-Low Energy Cost
7.3m fan | 1.5kW rated power | <1 kWh/h
PMSM delivers far higher efficiency than asynchronous motors. Drastically cut annual operating costs.
Whisper-Quiet
<55dB (as low as <50dB)
No gearbox noise. Ideal for offices, venues, and noise-sensitive production areas.
Safe & Maintenance-Free
Anti-fall wires | High-strength hangers | Drive separation
Prevents load shock & power-loss damage. Ensures high-altitude safety with zero routine maintenance.
All-Season Air Circulation
Breaks thermal stratification | Cool in summer / warm in winter
PMSM drives steady vertical airflow, reduces HVAC energy consumption year-round.
Core Technical Principles

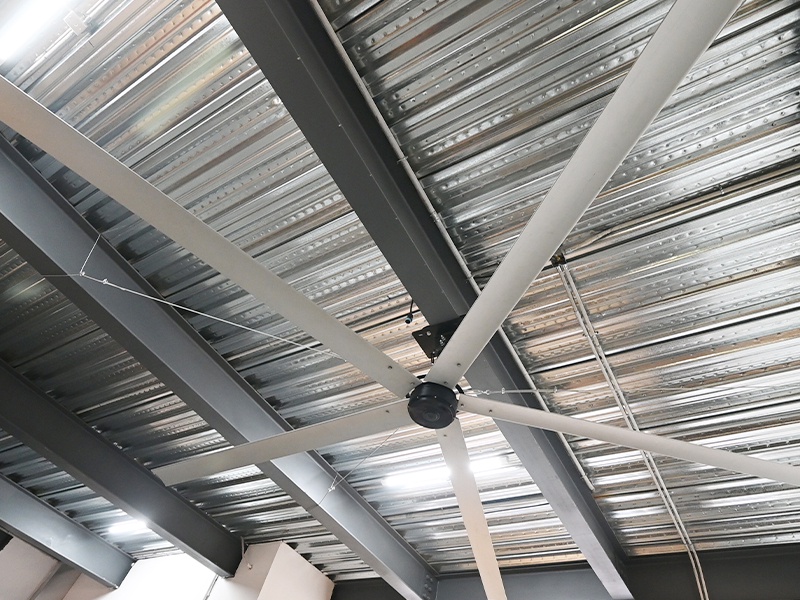

Permanent Magnet Synchronous Motor (PMSM) Technology
Permanent Magnet Synchronous Motor (PMSM) Technology

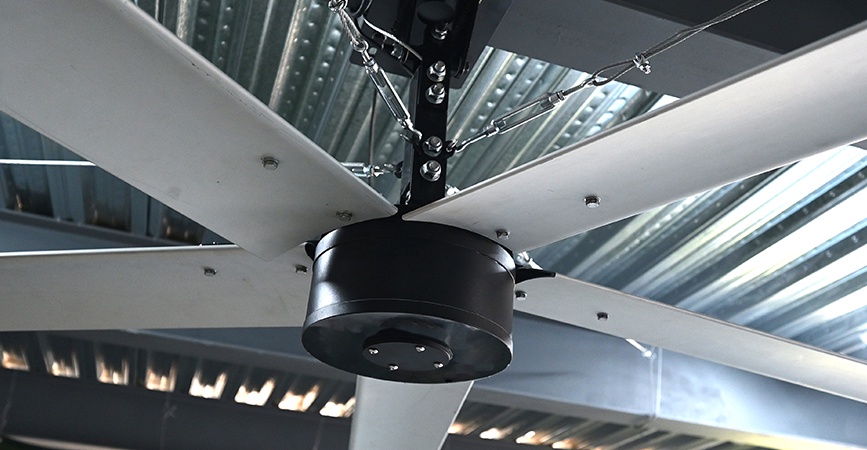

Different from traditional asynchronous motors, the PMSM embeds high-performance neodymium-iron-boron permanent magnets in the rotor, which generates a magnetic field by the permanent magnets without additional electric energy for excitation, fundamentally reducing energy consumption. The efficiency of the PMSM can reach IE4 and above, with a maximum efficiency of over 96%, achieving 30%-60% energy saving compared with traditional asynchronous motors. Meanwhile, it has the advantages of compact size, high torque and low heat generation, realizing direct drive operation, eliminating the gearbox structure, and completely removing transmission wear and noise.
Variable Frequency Speed Regulation Technology
Variable Frequency Speed Regulation Technology
The frequency converter accurately changes the power supply frequency to flexibly adjust the speed of the PMSM according to environmental requirements, realizing stepless speed regulation from 0 to the rated speed, controlling the output power on demand, avoiding invalid energy consumption, and adapting to the ventilation needs of different seasons and scenarios.
Aerodynamic Blade
Design
Aerodynamic Blade Design
The airfoil spiral fan blades are made of aviation-grade aluminum alloy, and matched with blade tip wings (vortex generators) to optimize the airflow structure and reduce blade tip turbulence and wind resistance. Only operating at a low speed (50-100 RPM), with the stable output of the PMSM, the blades can push a large amount of air downward to form a continuous gentle breeze of 2-3 m/s, with a coverage radius of more than 30 meters. A single unit has a large effective coverage area, bringing a comfortable feeling of natural breeze to the human body, with a sensible cooling effect of 3-8℃.
product center
To provide HVLS fans and support that exceed the expectations of our customers.
FT6-24 HVLS Fan
Permanent Magnet Synchronous Motor (PMSM). With diameters ranging from 4.9m(16ft) to 7.3m (24ft), these fans incorporate a new-generation integrated variable frequency controller developed specifically for large fan applications, allowing for one-touch access to current, voltage, and speed information. Equipped with an intelligent touch screen, the system can support wireless centralized control of up to 48 units (optional), eliminating the need for extensive wiring. Through optimized design, the E730 series fans are lighter, more cost-effective, and offer a higher return on investment.
E680 HVLS Fan
E680 HVLS fans are specifically engineered for medium size comercial and industrial spaces where conventional large-diameter HVLS fans are not suitable. Its compact form factor, quiet operation, and high energy efficiency make it an ideal solution for workshops, logistics areas, retail spaces, restaurants and outdoor patios. With diameters ranging from 1.8m to 4.3m, the E680 delivers efficient, comfortable airflow in spaces with ceiling heights from 3m to 8m, extremely low energy connsumption due to its optimized lightweight design. Compact, lightweight, and energy-ficient—purpose-built HVLS performance.

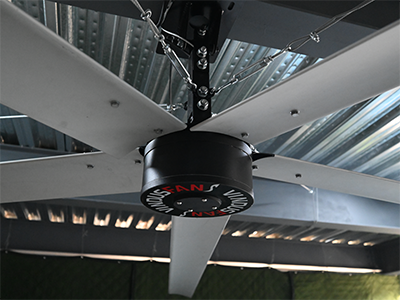

E730 HVLS Fan
The new generation Vindus E730 Series HVLS fans feature a high-volume, low-speed design powered by an advanced Permanent Magnet Synchronous Motor (PMSM). With diameters ranging from 4.9m(16ft) to 7.3m (24ft), these fans incorporate a new-generation integrated variable frequency controller developed specifically for large fan applications, allowing for one-touch access to current, voltage, and speed information. Equipped with an intelligent touch screen, the system can support wireless centralized control of up to 48 units (optional), eliminating the need for extensive wiring. Through optimized design, the E730 series fans are lighter, more cost-effective, and offer a higher return on investment.
Core Structure & Accessories
HVLS fans are the most energy-efficient industrial ventilation solution.

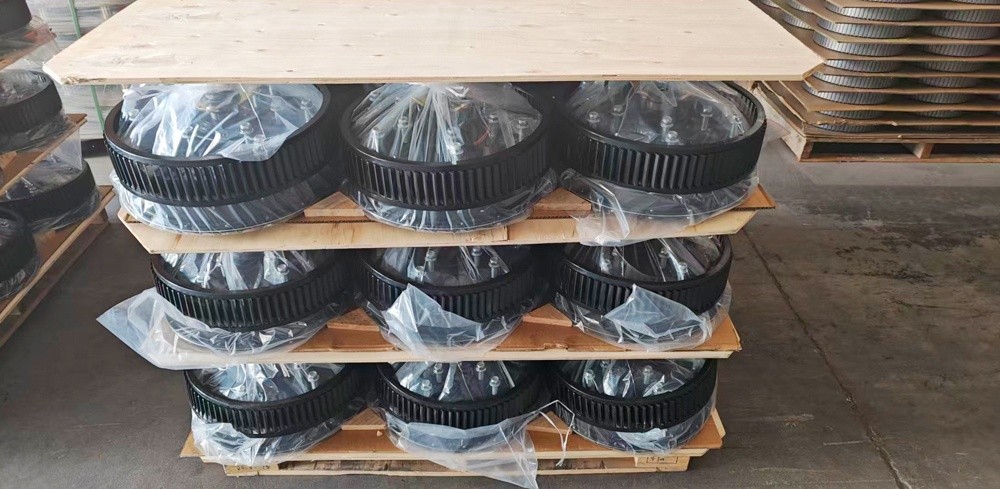

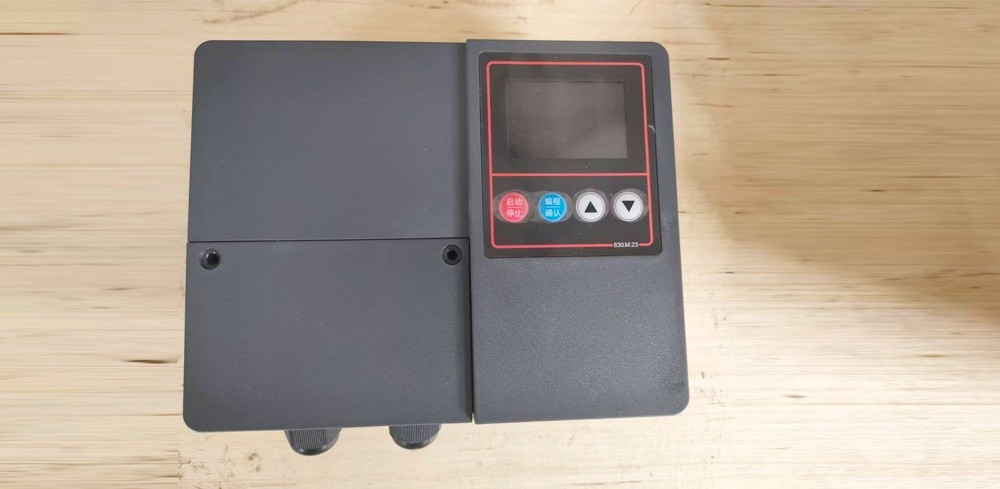

Power System
Permanent Magnet Synchronous Brushless Motor (PMSM) + Variable Frequency Controller (compatible with 380V/220V power supply)

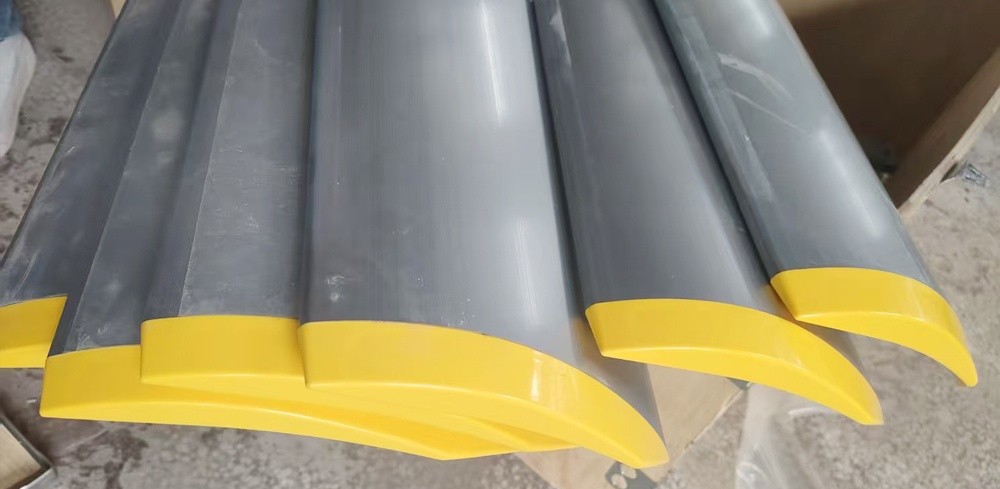

Air Supply System
Aviation-Grade Aluminum Alloy Airfoil Fan Blades + Blade Tip Wings (Vortex Generators)

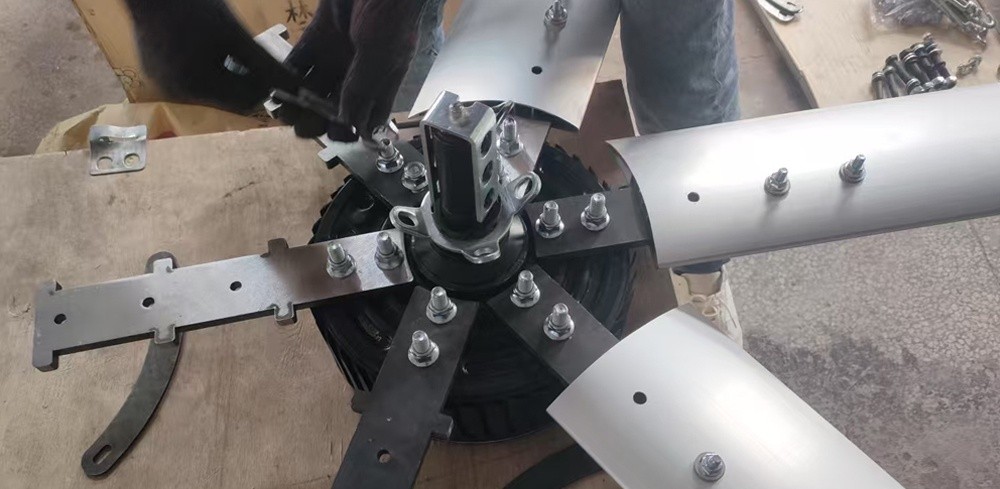

Installation System
Hanging Brackets (Roof Mounting Brackets), Connecting Rods (Downrods), Mounting Strips, Blade Protector Plates, Large Mounting Strip Protector Plates

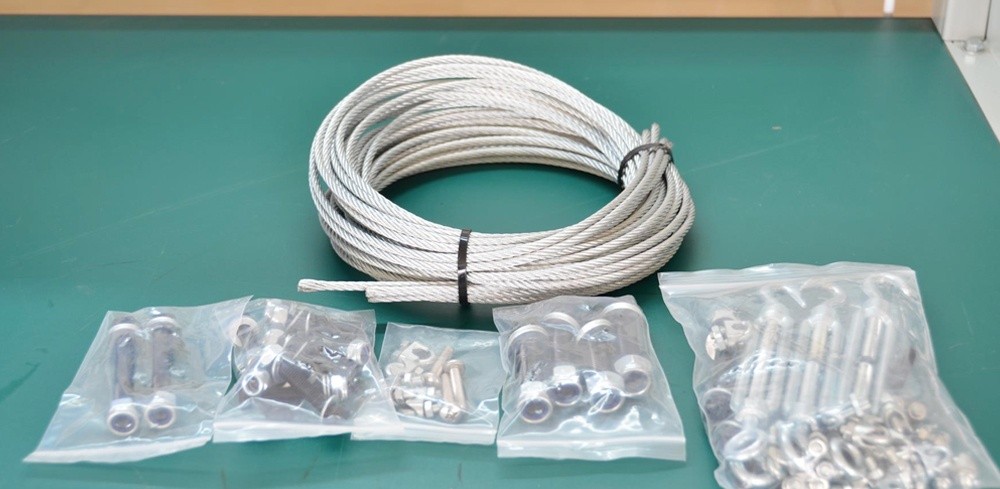

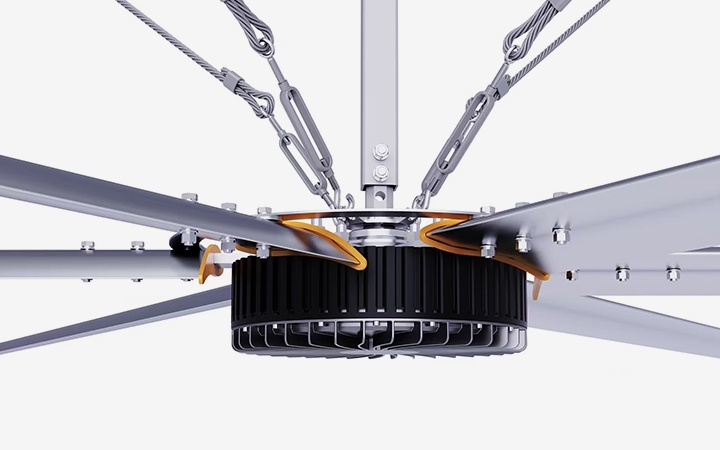

Safety System
Safety Steel Wire Ropes, Turnbuckles (Hook Type), Wire Rope Clips
Power System
Permanent Magnet Synchronous Brushless Motor (PMSM) + Variable Frequency Controller (compatible with 380V/220V power supply)
Air Supply System
Aviation-Grade Aluminum Alloy Airfoil Fan Blades + Blade Tip Wings (Vortex Generators)
Installation System
Hanging Brackets (Roof Mounting Brackets), Connecting Rods (Downrods), Mounting Strips, Blade Protector Plates, Large Mounting Strip Protector Plates
Safety System
Safety Steel Wire Ropes, Turnbuckles (Hook Type), Wire Rope Clips
Welcome your message
latest news
![HVLS Fans: The Ultimate Energy-Efficient Solution for Large Space Ventilation and Cooling]( "HVLS Fans: The Ultimate Energy-Efficient Solution for Large Space Ventilation and Cooling")

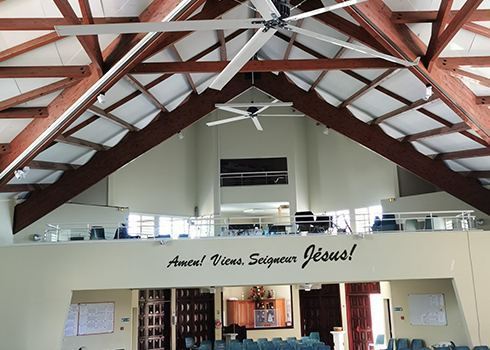

Mar 30, 2026HVLS Fans: The Ultimate Energy-Efficient Solution for Large Space Ventilation and CoolingHVLS industrial ceiling fans are designed for large spaces. High volume, low speed, over 90% energy saving, wide coverage, and no dead zones. Comfortable natural wind is widely used in factories, warehouses, logistics centers, and farms. Efficient ventilation, cooling, and dehumidification, safe and durable.![The Origin of HVLS Fans: From Cow Barns to Versatile Ventilation Solutions]( "The Origin of HVLS Fans: From Cow Barns to Versatile Ventilation Solutions")

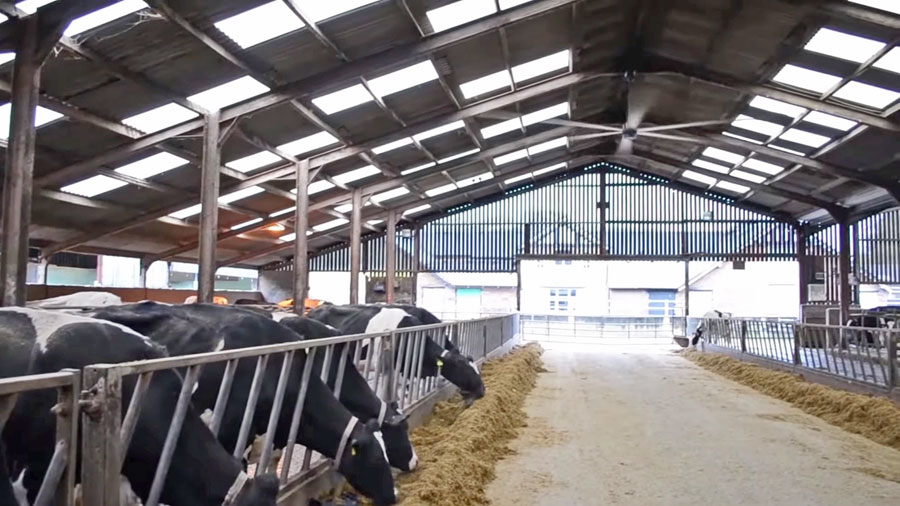

Mar 30, 2026The Origin of HVLS Fans: From Cow Barns to Versatile Ventilation SolutionsMany people don’t know that the HVLS fans (High Volume Low Speed Fans) widely used in various industries today were originally invented for a cow barn. When summer heat hits, the milk production of dairy cows always drops significantly — the core reason is that ammonia and other harmful gases are generated in the farm.![Why Do All HVLS Fans Choose Permanent Magnet Synchronous Motors?]( "Why Do All HVLS Fans Choose Permanent Magnet Synchronous Motors?")

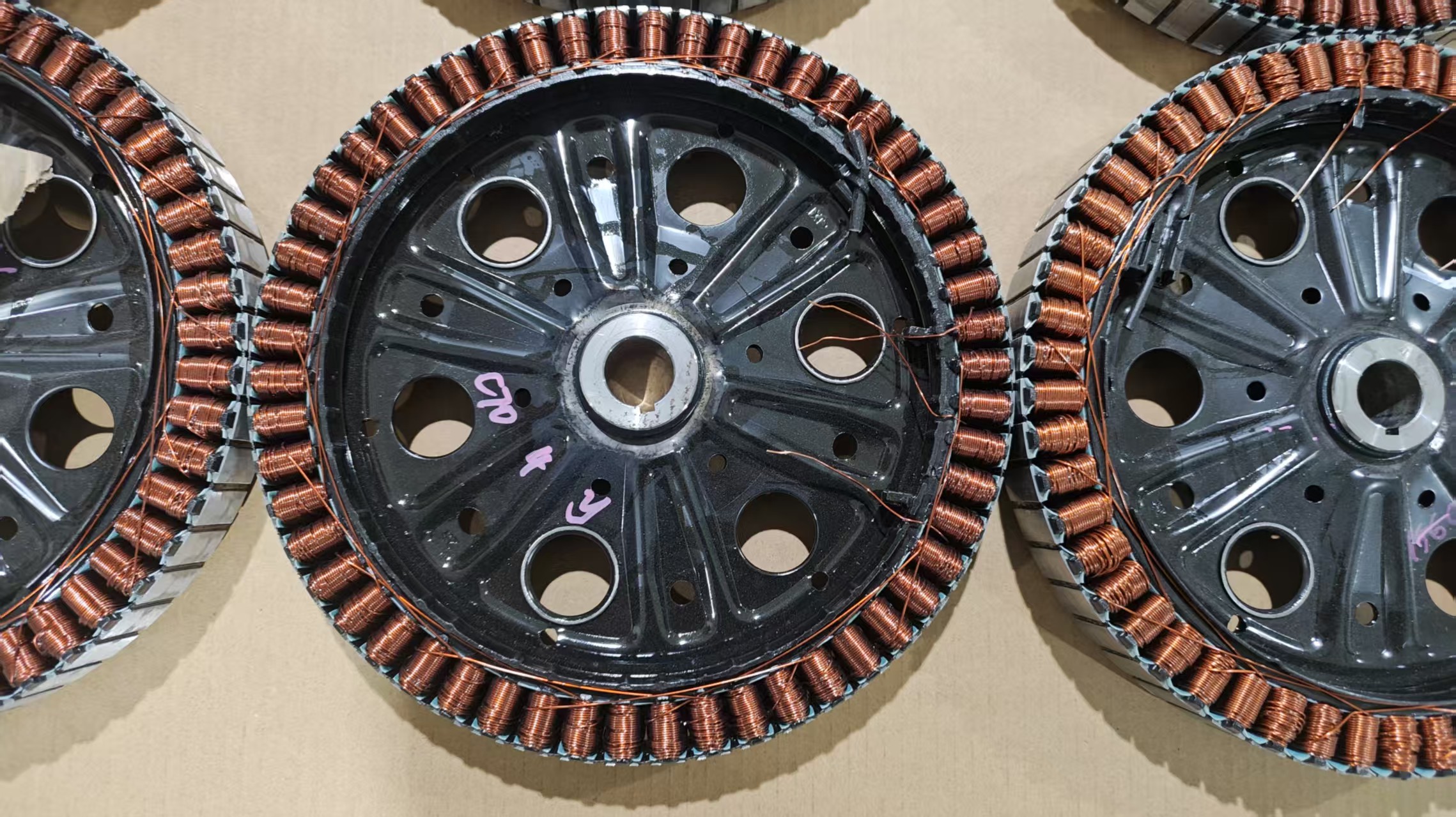

Apr 14, 2026Why Do All HVLS Fans Choose Permanent Magnet Synchronous Motors?In the field of industrial ventilation, whether we are talking about HVLS fans, industrial large fans, large diameter fans or high volume low speed fans, their core power systems almost all adopt permanent magnet synchronous motors (PMSM).![Quiet HVLS Fan for Commercial Use: Choosing the Best Industrial Ceiling Fan for Large Commercial Spaces]( "Quiet HVLS Fan for Commercial Use: Choosing the Best Industrial Ceiling Fan for Large Commercial Spaces")

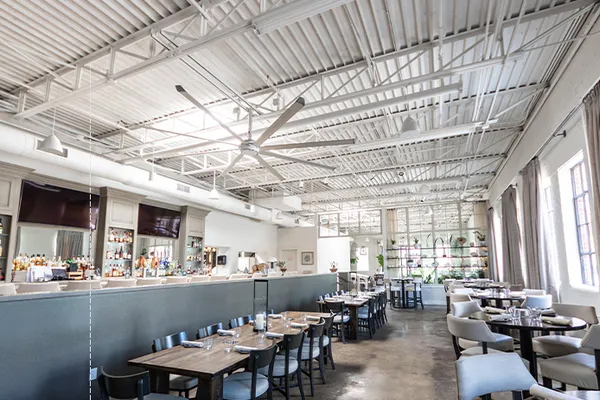

Mar 30, 2026Quiet HVLS Fan for Commercial Use: Choosing the Best Industrial Ceiling Fan for Large Commercial Spaces
